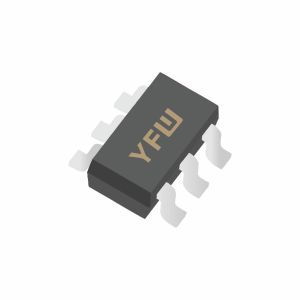

MMDT2222ADW 0.6A 40V SOT-363 markingK1P Small signal triode yfwdiode brand

Model: MMDT2222ADW

 Encapsulation: SOT-363

 Collector-base voltage BV(cbo): 75V

 Collector-emitter voltage BV(ceo): 40V

 Transmitter base voltage BV(ebo): 6V

 Collecting electrode current IC: 0.6A

 DC current gain: VCE=10V IC=0.1mA hFE=35

 VCE=10V IC=1.0mA hFE=50

 VCE=10V IC=10mA hFE=75

 VCE=10V IC=150mA hFE=100-300

 VCE=10V IC=500mA hFE=40

 VCE=10V IC=150mA hFE=35

 Collector-emitter saturation voltage: IC=150mA IB=15mA VCE(sat)=0.3V

 IC=500mA IB=50mA VCE(sat)=1.0V

 Number of pins: 6

 Product features: Provide complementary PNP type MMDT2907ADW

 Product application: NPN silicon epital plane transistor for high-voltage amplifier applications
